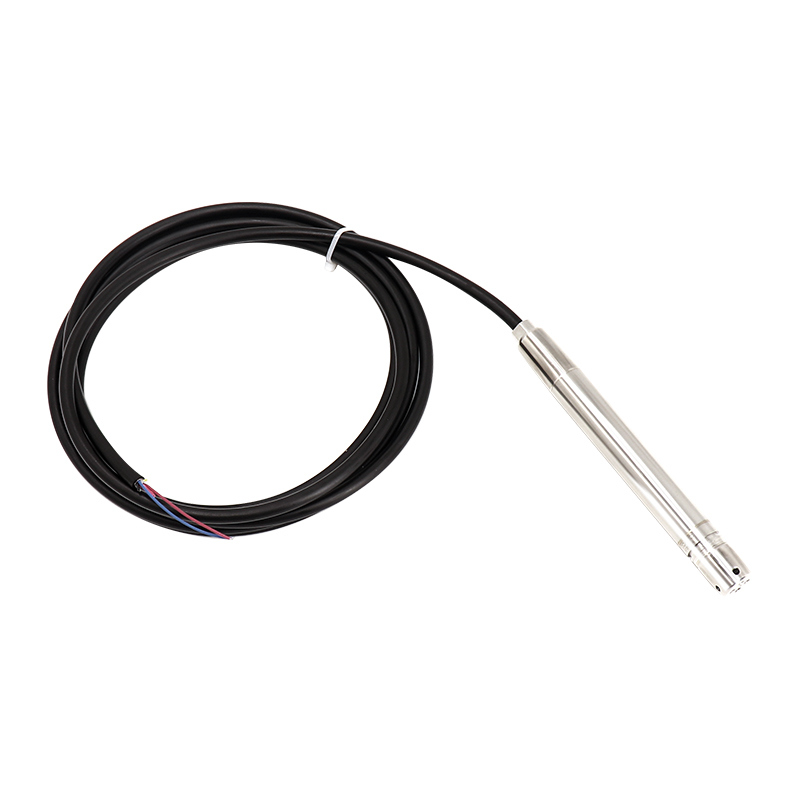

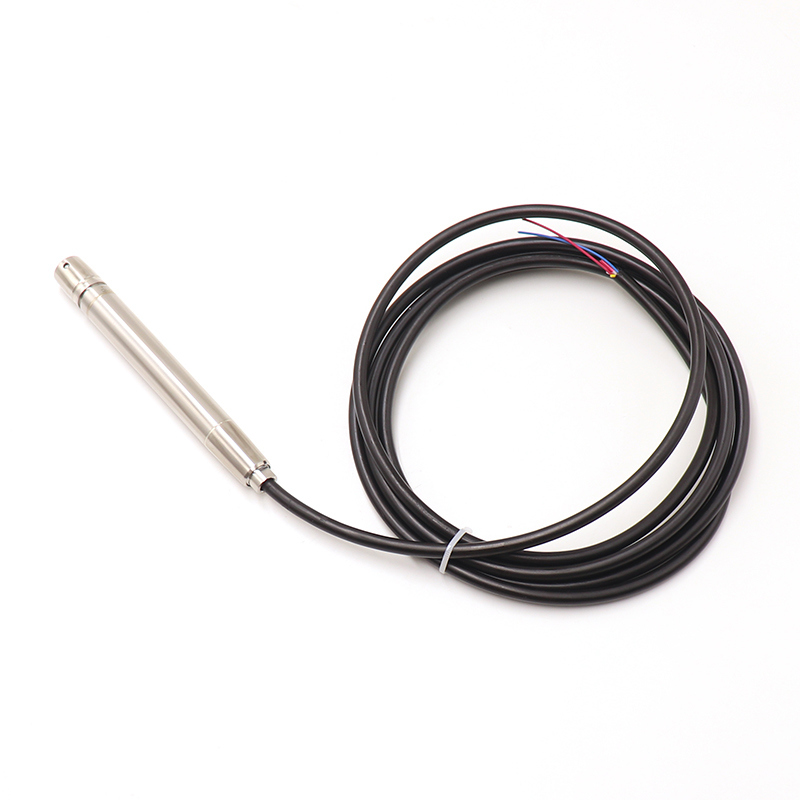

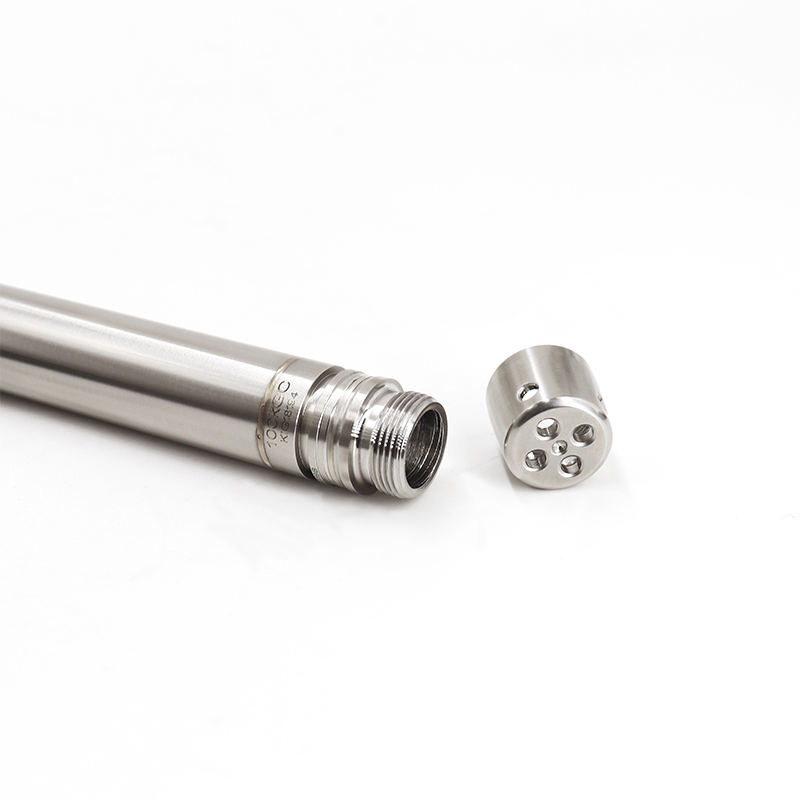

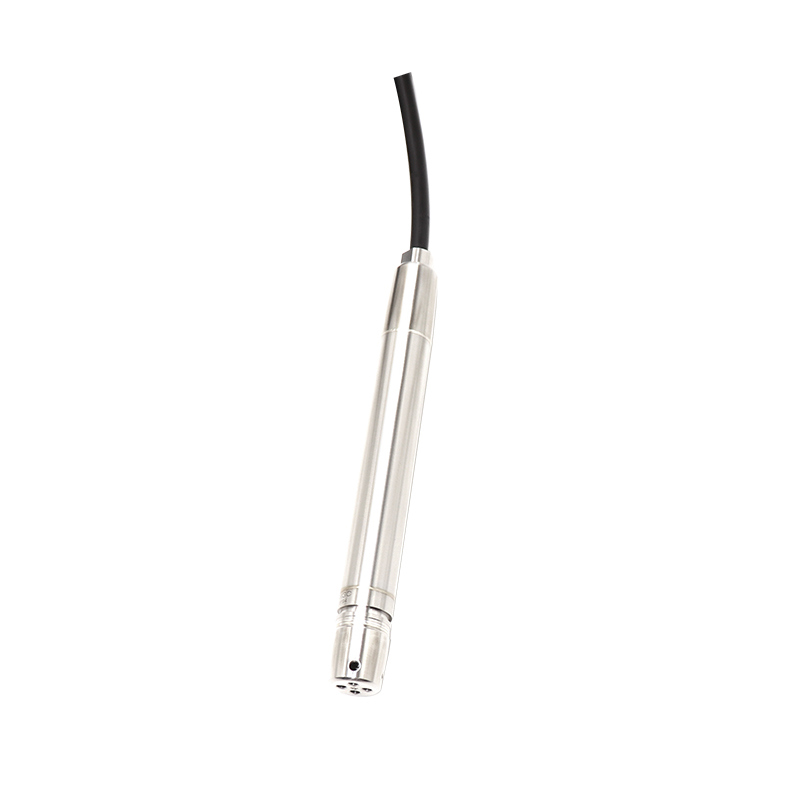

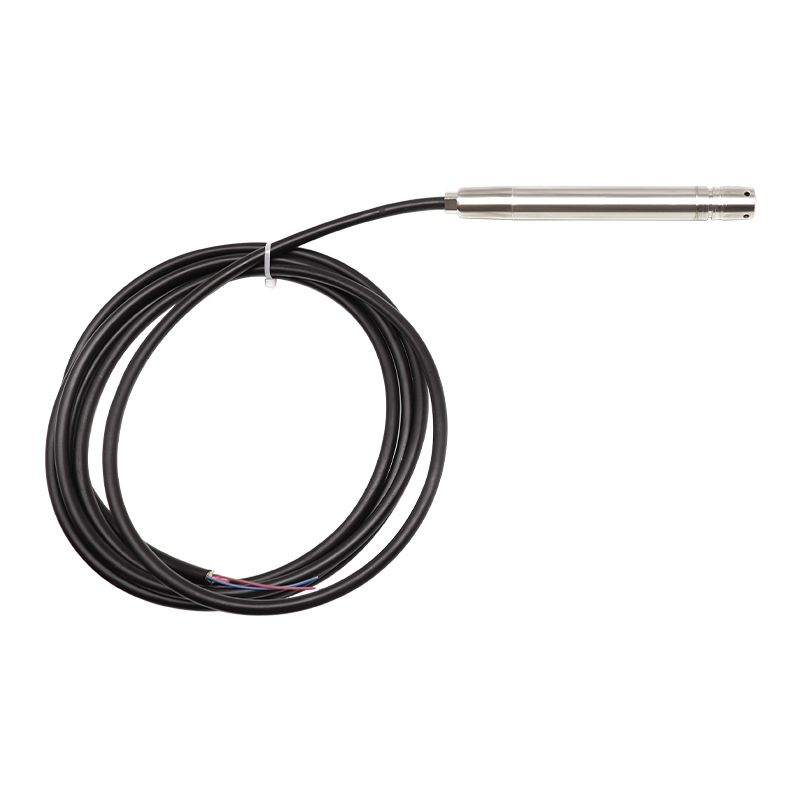

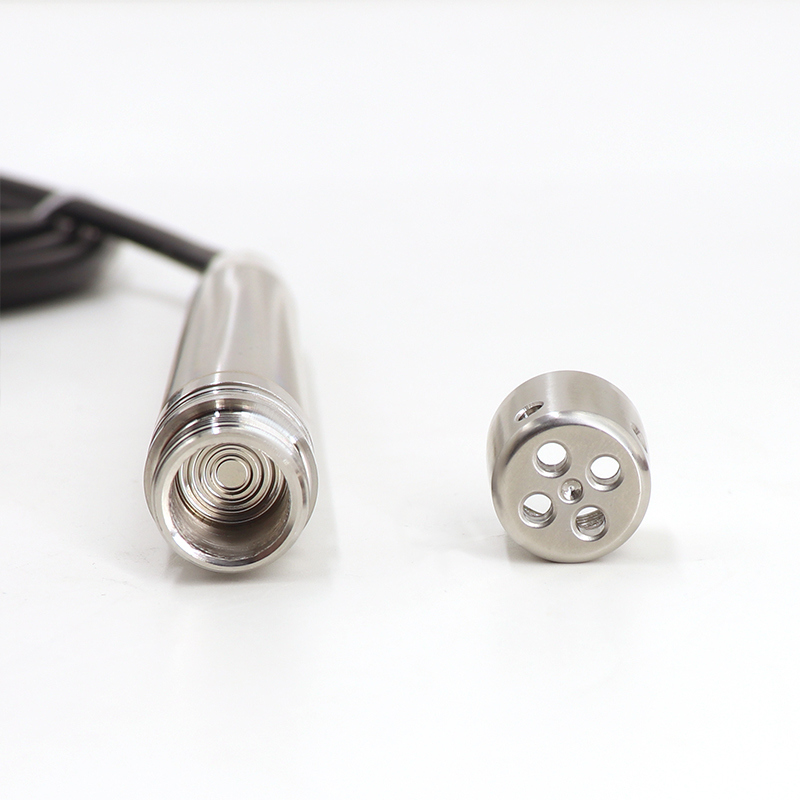

Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

En casa > productos > Transmisor del nivel del agua >

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Lugar de origen:

Anhui, China

Nombre de la marca:

WNK

Número de modelo:

WNK8010-19

Contacta con nosotros

Solicitar una cita

Detalles del producto

Garantía:

1 año

Soporte personalizado:

OEM, ODM

Rango de presión::

0... entre 2 y 200 metros

Producción:

El valor de las emisiones de CO2 es el valor de las emisiones de CO2 de los combustibles fósiles.

Exactitud:

00,2% de FS, 0,5% de FS,

Fuente de alimentación:

12~36VDC

Clase de protección:

IP68

Solicitud:

Agua de lluvia, agua potable, aguas residuales, aguas residuales, agua de mar

Material de alojamiento:

Las demás partidas de la caja:

Temperatura de funcionamiento::

-40~85 ℃

Tipo:

Indicador

Servicio OEM:

OEM, ODM, arreglo para requisitos particulares disponible

Puerto:

SHANGHAI/NINGBO

Resaltar:

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Condiciones de pago y envío

Cantidad de orden mínima

1 por ciento

Precio

$35.00 - $50.00/Pieces

Detalles de empaquetado

Cada conjunto en una caja de cartón individual, protegida con espuma.

Tiempo de entrega

5-8 días de trabajo

Condiciones de pago

T/T, Western Union, Moneygram, PayPal

Capacidad de la fuente

2000 Pieza/Piezas por mes sensor de presión de nivel

Productos relacionados

El video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Obtenga el mejor precio

El video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Obtenga el mejor precio

El video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Obtenga el mejor precio

El video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
