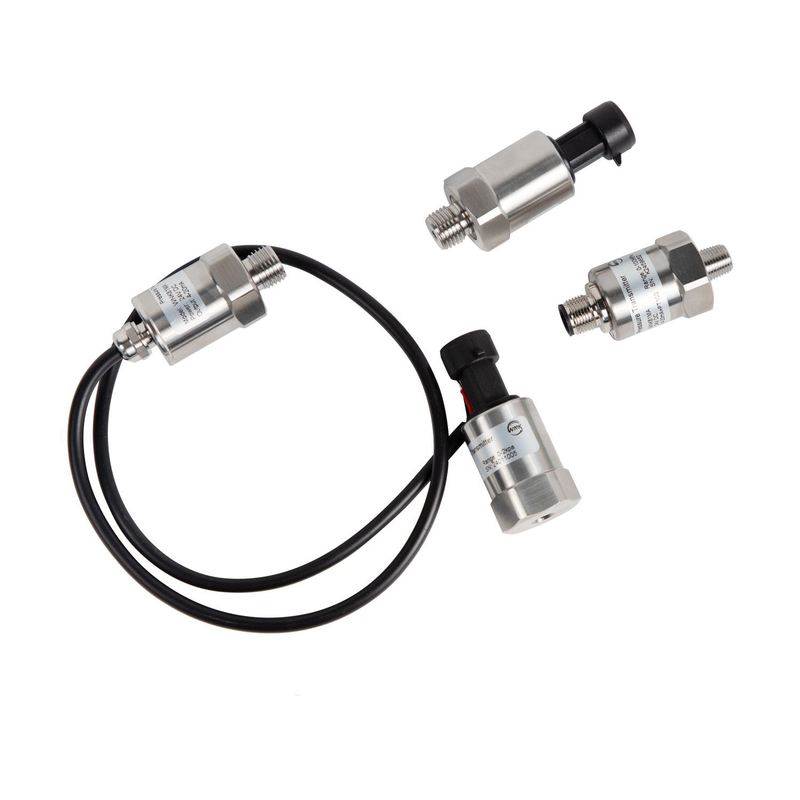

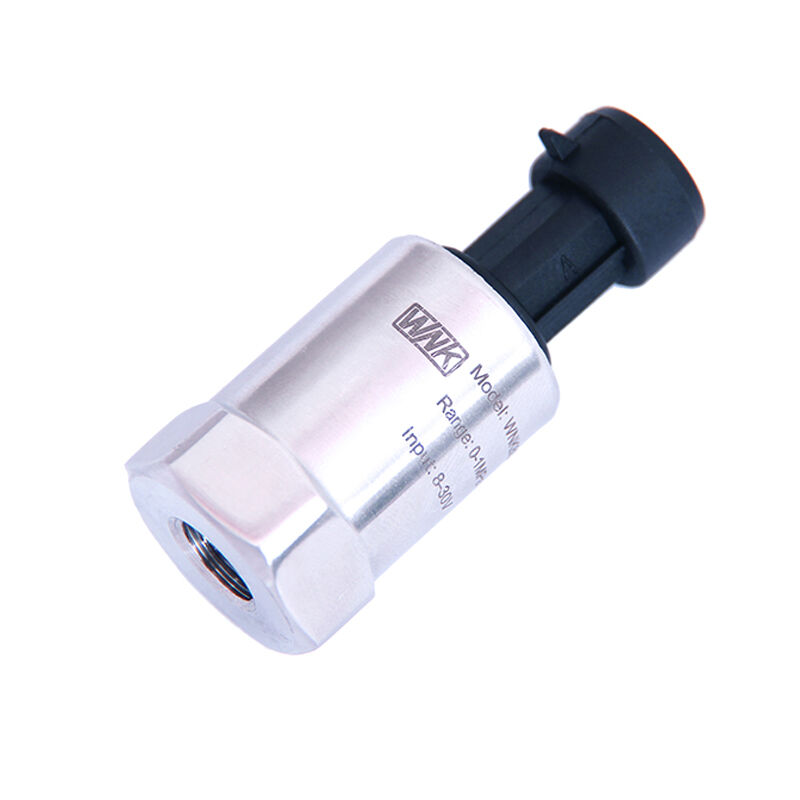

Name: WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Price: 10.00 USD
Availability: InStock

En casa > productos > Sensor de la presión de la HVAC >

WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Lugar de origen:

Anhui, China

Nombre de la marca:

WNK

Certificación:

CE, ROHS

Número de modelo:

WNK80MA

Contacta con nosotros

Solicitar una cita

Detalles del producto

Garantía:

1 año

Solicitud:

HVAC refrigerante del aire acondicionado

Clase de protección:

Protección IP65 /67

Producción:

4- 20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Material de la carcasa:

304SS, 316L, 316SS

Medios de comunicación medidos:

Líquido, gas, vapor, aceite, aire

Servicio OEM:

OEM, ODM, arreglo para requisitos particulares disponible

Fuente de alimentación:

5V DC, 12-32V DC

Rango de presión::

0-15Mpa

Temperatura de funcionamiento::

-40~85 ℃

Exactitud:

0.5%FS 1%FS

Puerto:

SHANGHAI/NINGBO

Resaltar:

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Precio

$19.00/Pieces 1-49 Pieces

Detalles de empaquetado

100 unidades por caja principal

Tiempo de entrega

5-8 DÍAS LABORALES

Condiciones de pago

T/T, Western Union, Moneygram, PayPal

Capacidad de la fuente

5000 piezas/piezas por mes Sensor de presión para aire acondicionado

Productos relacionados

El video

Low Cost Water Pressure Sensor Transmitter Manufacture Pressure Measuring Instruments

Obtenga el mejor precio

El video

WNK Stainless Steel Universal 4-20ma Pressure Transmitter NPT1/4 0-5V Output 0-200 Psi Air Pressure Sensors Transducer

Obtenga el mejor precio

El video

Sensor de presión de refrigeración WNK HVAC Transmisor de presión 0,5-4,5v

Obtenga el mejor precio

El video

WNK 4-20ma 0,5-4,5V HAVC compresor de aire camión de agua sensor de presión de freno de aceite de combustible

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
