Name: WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

En casa > productos > sensor de la presión del iot >

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

Lugar de origen:

CHIANO

Nombre de la marca:

WNK

Número de modelo:

WNK125SP

Contacta con nosotros

Solicitar una cita

Detalles del producto

Conexión mecánica:

M6*1, personalizado

Medios aplicables:

líquido, gas

Tipo de presión:

Presión de indicador, presión absoluta

Banda de error de la herramienta:

±1,0%

Rango de presión:

El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef

Fuente de alimentación:

5 VCC

Producción:

0.5 ~ 4.5V, I2C

Exactitud:

±1%FS

Resaltar:

I2C water pressure sensor for coffee machine

M6 pressure transducer with warranty

0.5-4.5V coffee machine pressure sensor

Condiciones de pago y envío

Productos relacionados

El video

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

Obtenga el mejor precio

El video

Transductor de presión de aire y agua ATEX CE 4-20mA 0.5-4.5V I2C -100kpa-100MP Transmisor de sensor de presión absoluta de vacío

Obtenga el mejor precio

El video

WNK125P 0.5~4.5V 150PSI Sensor de presión 5Bar MAP Sensor de presión automático

Obtenga el mejor precio

El video

WNK Low Cost Compact Pressure Sensor 0,5-4,5V para aceite de agua y aire

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

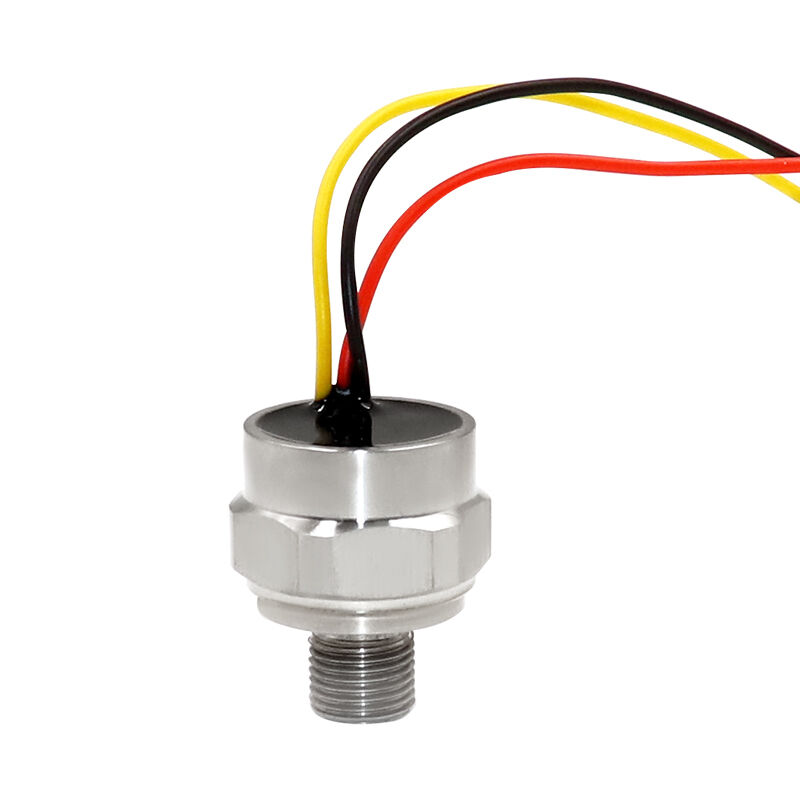

WNK I2C Pressure Sensor for Coffee Machine

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine 0

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

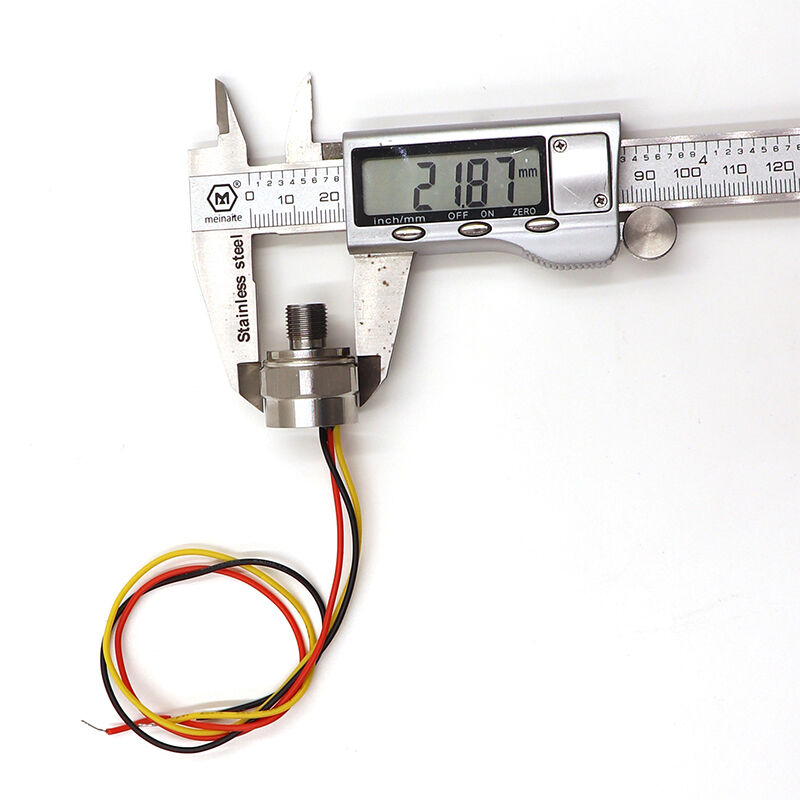

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
